  • EVO 7/8/9 BILLET DOUBLE PUMPER KIT
  • EVO 7/8/9 BILLET DOUBLE PUMPER KIT
  • EVO 7/8/9 BILLET DOUBLE PUMPER KIT
  • EVO 7/8/9 BILLET DOUBLE PUMPER KIT
EVO 7/8/9 BILLET DOUBLE PUMPER KIT
  • EVO 7/8/9 BILLET DOUBLE PUMPER KIT
  • EVO 7/8/9 BILLET DOUBLE PUMPER KIT
  • EVO 7/8/9 BILLET DOUBLE PUMPER KIT
  • EVO 7/8/9 BILLET DOUBLE PUMPER KIT

EVO 7/8/9 BILLET DOUBLE PUMPER KIT

  • $459.00
Qty:
OR
  • Shipping Policy

    World Wide Shipping Available

    Learn more
  • Payment methods

    Paypal Account Not Required for Checkout



    Learn more

  • PRODUCT INFO

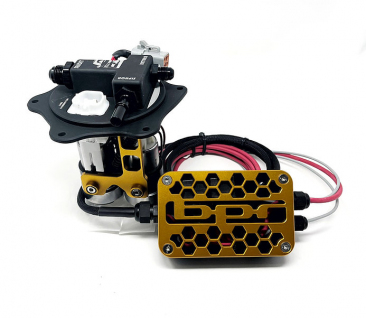

    Here is a double pumper system for the evo7/8/9 platform with billet aluminum 6061 hanger. Billet relay box and billet pump bracket
     The absolute best products are used in this fuel system. There is not a better, more affordable, user friendly than this setup in the market and includes life time warranty on all parts and hardware as well as limited warranty on the pumps.

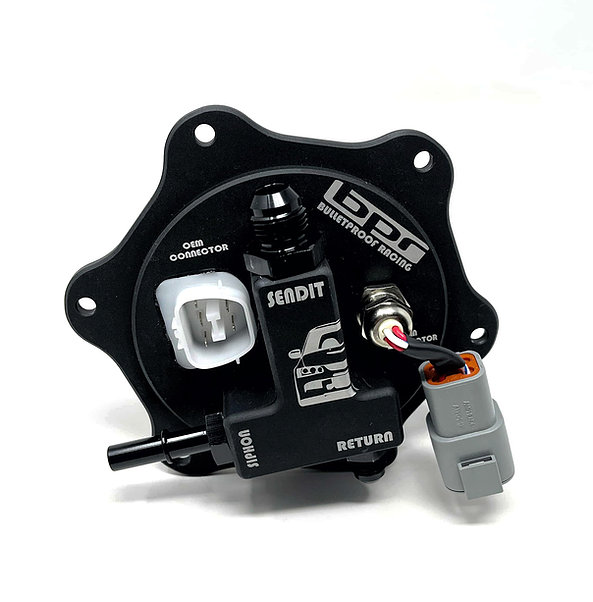

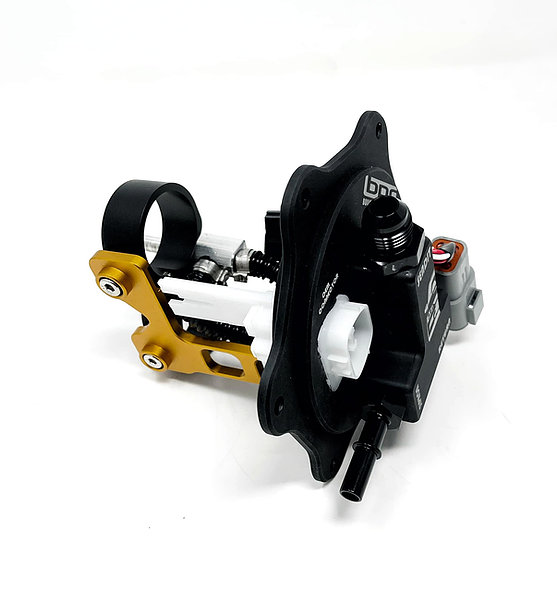

     The complete Kit consist of a twin walbro 450 (274 high pressure series) with 8an feed and 6an return and barb push on fittings (all included) for the suction side. Retains a brand new stock syphon tube drilled to specific size, brand new housing gasket and stock connector for the stock wiring harness to avoid any wire cutting. Also fuel level sending unit (not included) stays in the same spot as the stock housing. A Deutsch mil-spec connector for the pumps to connect to the relay box. Mil-spec wiring harness. Billet relay box 2 TICO relays adjustable boost pressure switch and battery cable. This kit requires absolutely no wire cutting and installation takes about 30min.
     Simply drop in the double pumper in the tank. Connect the relay box to the double pumper using the provided wire harness. connect the wire from the relay box to the battery and install a vacuum hose from your manifold the the barb fitting in the relay box. Thats all!!!!!

    • Weight
      3 lbs
    • SKU
      BPR-Doublepumper
  • Pump Options:
    No Pumps, Add 1 Walbro 90000274 (450), Add 2 Walbro 90000274 (450), Add 1 Walbro 90000285 (525), Add 2 Walbro 90000285 (525)
  • Fitting Options:
    -8AN Feed / -6AN Return Fittings, OEM Push In Style Fittings, -6AN Feed / -6AN Return Fittings
  • Fuel Lines Kit:
    -8AN Feed / -6AN Return / Fittings/ Inline Filter, No Fuel Lines
  • Billet Relay Box:
    No Billet Relay Box, Add Billet Relay Box

AF Shipping Policy

DOMESTIC SHIPPING (Orders within the USA)

All orders are shipped using UPS, FEDEX, or USPS using their Current Shipping Rates and includes Insurance up to $999 for Manifold orders using UPS/FEDEX and $100 for USPS Flat Rate. Please contact us if you need additional Shipping Insurance before ordering.

USPS (United States Postal Service)

Selecting the USPS 3-5 day express option is for Domestic Customers ordering small sized products that would fit in a Small/Medium/Large Flat Rate Box. If you are ordering from a country OUTSIDE THE USA, additional Fees Could Apply from selecting this option.

INTERNATIONAL SHIPMENTS:

We do offer world wide shipping, Via UPS, DHL, or USPS. However, our website is not currently configured to accurately quote international shipments. Please contact us Prior to Ordering for an accurate quote if you are from outside the USA.

CUSTOMS, DUTIES, & IMPORT FEES:

Customers are responsible for all Customs, Duties, and Import Fees associated with international shipments between you and your Local or Federal Government. We will NOT falsely lower the Declared Value to help avoid or lower your Import Fees

CUSTOMERS SHIPPING ITEMS TO ARCHER FAB

Customers shipping items to Archer Fab that are needed for the Fabrication process (Turbocharger, or Turbine housing) will be charged the Return Shipping, additional to the amount originally paid in the invoice, unless otherwise specified or included.



We accept the following payment methods:

AF Consumer Terms & Conditions / Warranty Info
By purchasing from Archer fabrications LLC, you the consumer Understand and Agree to the following:
• All Archer fabrications, LLC. Products are intended for off road/track use only, and are recommended to be installed by a professional.
• All Archer Fabrications, LLC. Hand Made, Welded, & Fabricated Parts are Final sale (no refunds); Including but not necessarily limited to: Turbo manifolds, exhaust systems, waste gate dump tubes, O2 housings etc...

•Returns:

It is SOLELY at the discretion of Archer Fabrications, LLC.  to Approve or deny any AF welded product returns. Any and all approved returns will be subject to a 50% Restocking fee based off the total invoice

•All Third party products that are Returned/Refunded will be subject to the manufacturers return/exchange policy and a 25% Restocking fee.


• All Archer Fabrications, LLC Turbo Manifolds will include a LIMITED 3 YEAR WARRANTY Against welding related defects to the original purchase only, from the date purchased. Please contact us if you have any issues with your product and we will do our best to make it right.

• The limited warranty does not cover damage you may have caused & related or due to the following:

•User neglect, improper installation, damage related to a heavy Waste gate dump tube, damage due to vibratory contact from other parts, Damage caused from "heat wrapping".


Archer Fabrications, LLC. Will not be held liable for any damage that could occur to the related and moving parts associated with a turbo system, such as; The Engine & The Turbocharger, or damage to the vehicle itself, at anytime.


Archer Fabrications, LLC. Reserves the right to change or update the Terms and conditions / Warranty Info at any time.
