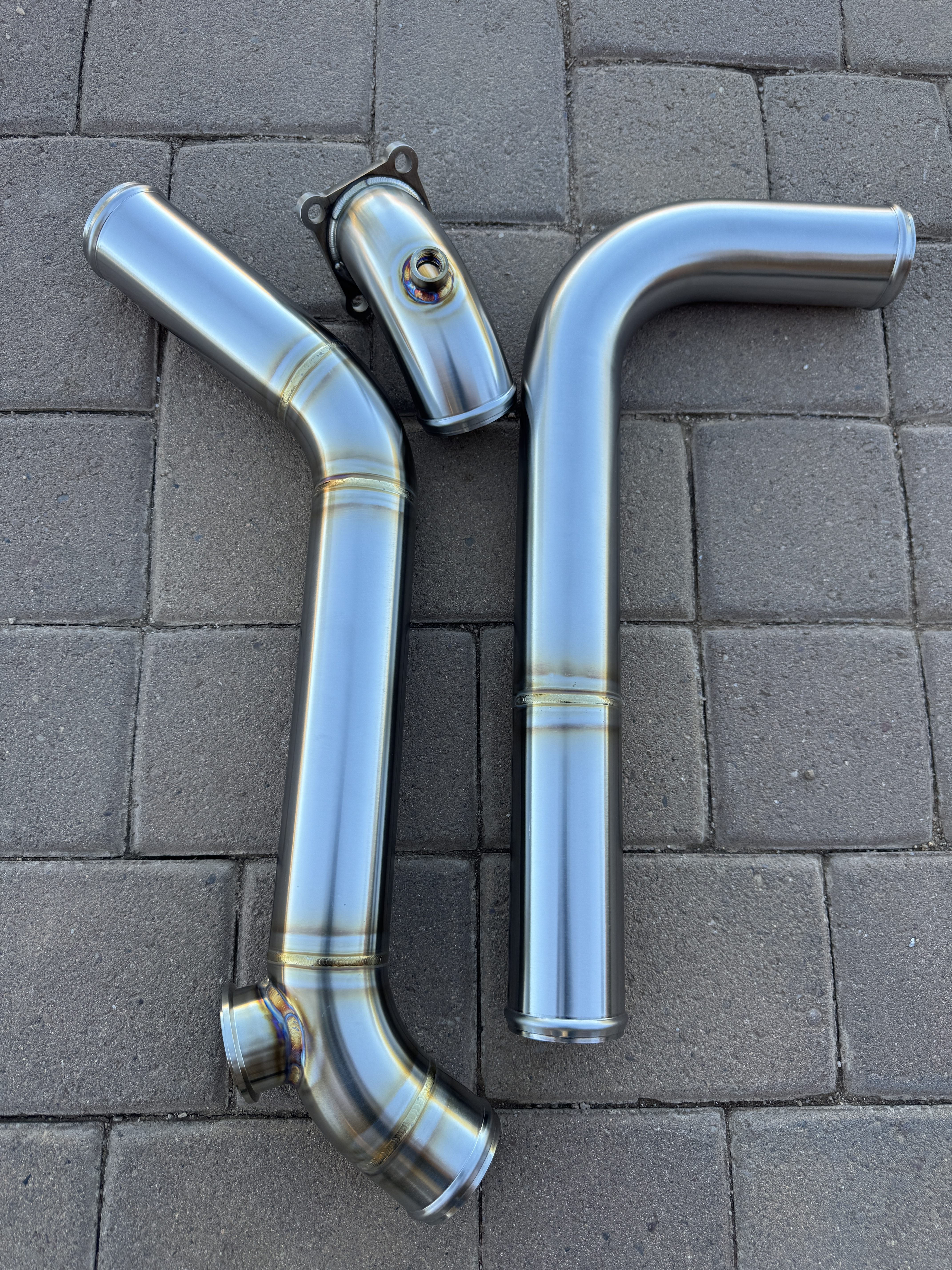

AF 2G DSM Speed Density Short Route Intercooler Piping (piping only)

This piping kit is for stock intake manifold and throttle body using an ETS or similar Short Route intercooler core in a 2G DSM

•Exact Replication from Discontinued ETS 3 Piece Piping for ETS Ultra Short Route Front Mount Intercooler for 2G DSM

•Blow off Valve flange orented on the intercooler side of the pipe, faces down for a clean look, and a louder PSSHH

•includes 3/8 NPT Bung for GM Intake Air Temp Sensors

•Includes Tial Q Blow off Valve Flange

•ideal for speed density (Blow off valve not intended to recirculate)

•will not work with coupler fitted Throttle bodies*

•will only work with stock 1g/2g intake manifolds in a 2g eclipse/talon

•no J pipe option at this time

•does not include couplers or clamps

•will require two 2.5” 90* couplers, and two 2.5” Straight or hump couplers and clamps.

we will no longer be offering the pie cut variation of this kit

  • $548.98
Only 4 left in stock
  • Shipping Policy

    World Wide Shipping Available

  • Payment methods

    Paypal Account Not Required for Checkout


Includes 3/8 NPT Bung for GM Intake Air Temp Sensors

Includes Tial Q Blow off Valve Flange

Made from Aerospace grade T304 Stainless Tubing

Mandrel Bent & Welded construction

Bead rolled tube ends to prevent couplers from slipping off at high boost.

Made in USA

back purged using 99.998% commercially pure liquid Argon

IAT option for Speed density available and preferred

*Brushed finish*

All products are made to order in the order they are recieved, please contact for leadtimes

    • Weight
      11.05 lbs
    • SKU
  • Speed Density:
    IAT Bung
  • Blow off Valve Flange
    TiAL Q/QR 50mm
